LINEAR LUMINAIRES MADE TO MEASURE – DISCOVER OUR LINEAR LIGHT SYSTEM

YOUR CUSTOMISED LUMINAIRE IN JUST A FEW STEPS!

The linear light line systems can be installed both as surface-mounted luminaires and with wire suspension. With both systems, PROLAMP30 and PROLAMP40, indirect lighting can be realised for the lamps with wire suspension. A choice of three different profile colours allows you to create the ideal look for your luminaire. Depending on where the luminaire is used, you can choose between two covers for the PROLAMP40: 65 % light transmission in Opal or 80 % in OpalPlus. The PROLAMP30 even offers you seven cover options: 80 % light transmission in OpalPlus,
65 % in opal, 75 % in prismatic, 80 % in U-cover and lens cover with the variants 60° lens (80 % light transmission), 80° asymmetric (80 % light transmission) and 80° double asymmetric (80 % light transmission). For the light colour, you can choose from various shades of white, sky blue, RGB, RGB+WW and CCT. The profile lengths can be customised to suit your project. The PROLAMP30 lens cover versions are available in lengths of 1,180 mm, 2,356 mm, 3,532 mm and 5,884 mm. The modular luminaires offer a wide range of dimming options, customised to your specific requirements.

PROLAMP MODULAR SYSTEM

FOR INDIVIDUAL CONFIGURATION
Mounting type
Montageart
Cable connector
  • aufzaehlungs-icon
    rear - central
  • aufzaehlungs-icon
    rear - on side
  • aufzaehlungs-icon
    front
Housing colors
  • aufzaehlungs-icon
    Black
    RAL 9005
    Powder coated
  • aufzaehlungs-icon
    White
    RAL 9016
    Powder coated
  • aufzaehlungs-icon
    Silver
    Powder coated
Mobile_Bild_Uebersicht

Dimming

Dimmbar_Tabelle_2700
Dimmbar_Tabelle_3000
Dimmbar_Tabelle_4000
Dimmbar_Tabelle_CCT
Dimmbar_Tabelle_RGB
Dimmbar_Tabelle_RGB_WW

Switchable
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel

Triac
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel

DALI-Push
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel

ZigBee
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel

Radio
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel
Dimmbar_Tabelle_hagel

2.700 K
3.000 K
4.000 K
Skyblue
CCT
RGB
RGB+WW

Indirekte Beleuchtung - Lichtfarbe
NUR BEI DER HÄNGELEUCHTE MÖGLICH
Modale_PROLAMP_30_V2_Lamp
Modale_PROLAMP_30_V2_Laenge

2.700 K
3.000 K
4.000 K
CCT

Direkte Beleuchtung - Lichtfarbe

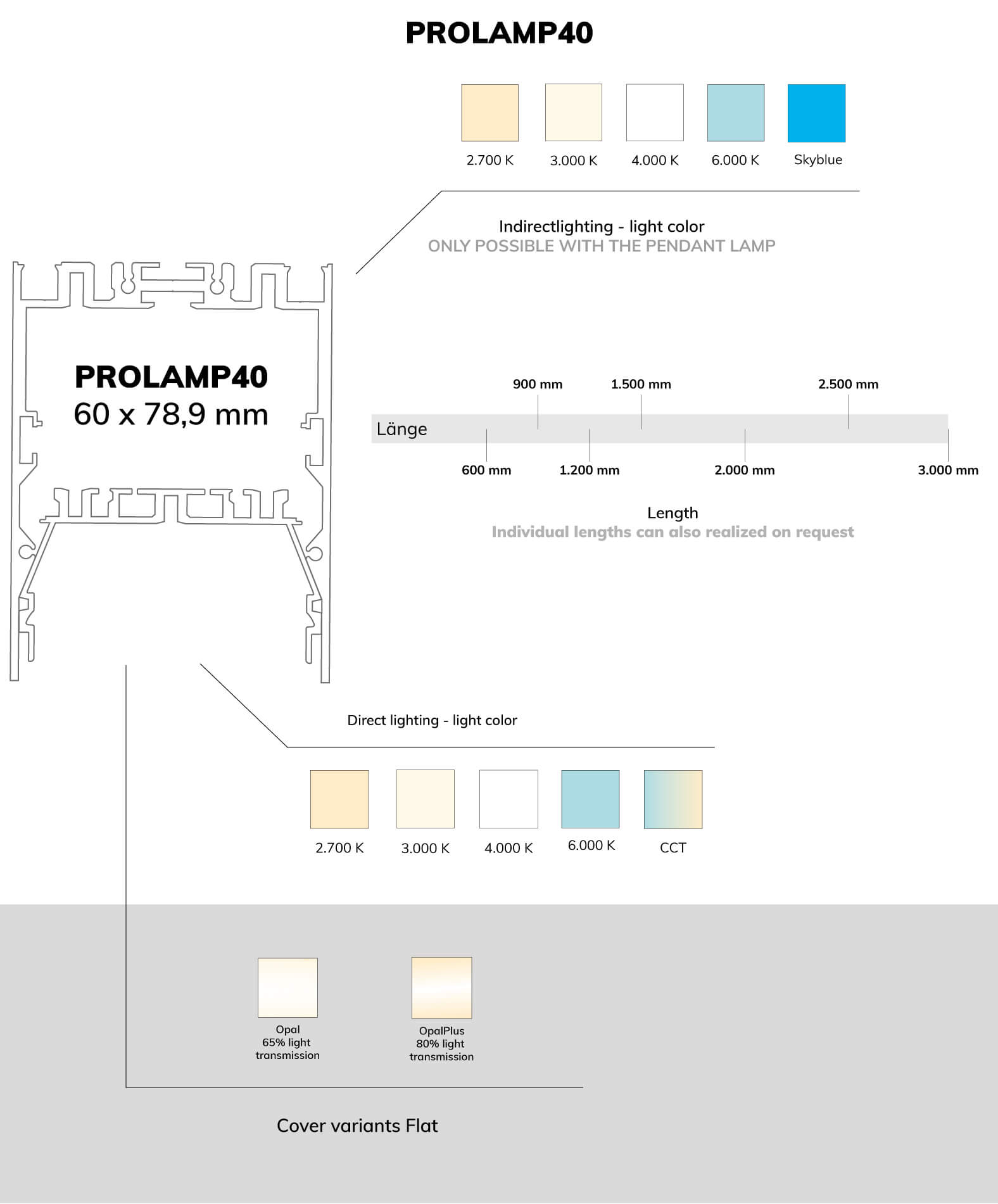

PROLAMP40
The PROLAMP40 is available both as a surface-mounted and pendant luminaire. If it is used as a pendant luminaire indirect lighting is also possible.
Porlamp40_Serie
PROLAMP30
As delicate as the PROLAMP30 may appear, it leaves nothing to be desired in terms of performance. The powerful luminaire is also available with various diffusers. The PROLAMP30 is particularly suitable for VDU workstations.
Porlamp30_Serie

PROLAMP40 WITH SKYBLUE LIGHT COLOR AVAILABLE AS INDIRECT LIGHTING!

HIGHLIGHTS FROM OUR RANGE

Our sample configurations give you an overview of the most important features and ares of application of our modular continuous-row lighting system.
Discover the versatility and adaptability of this lighting concept and be inspired for your own projects.

We will be happy to provide you with a no-obligation initial consulation!

Highlights_PROLAMP_groß_buero

Dynamic white DALI-dimmable (HCL)
ceiling light for the office

200104
LED surface-mounted light PROLAMP30H
41W | silver | 1500mm |
opal+ Push/DALI-dimmable | CCT

Special features
» Human Centric Lighting
» Dynamic white lighting

Highlights_PROLAMP_groß_buero_indirekt

Glare reduced pendant lamp for the
office with indirect SkyBlue lighting

200103
LED surface-mounted light PROLAMP30LID
35W | white | 1200mm |
prismatic 4,000 K | SkyBlue

Special features
» Prismatic cover
» Indirect lighting with SkyBlue

Highlights_PROLAMP_groß_kindergarten

TRIAC dimmable ceiling mounted
light in kindergarten (>150lm/W)

200110
LED surface-mounted light PROLAMP40D
49W | white | 3000mm |
opal+ TRIAC dimmable | 3,000K

Special features
» TRIAC dimmable
» Can be connected horizontally with corner connectors

Highlights_PROLAMP_groß_lager

Double asymmetrical light
line in the hardware store (>120lm/W)

200109
LEDPROLAMP30FID
172W| silver | 5884 mm |
double asymmetric 25° Push/DALI dimmable |
4,000K | 4,000K | 2-part

Special features
» Special lens cover
» Indirect lighting

Highlights_PROLAMP_groß_esstisch

Smart controllable, dynamic white
pendant luminaire over the dining table

200111
LED pendant light PROLAMP40ID
68W | white | 1500mm |
opal+ Zigbee + Sys-Pro dimmable | CCT | 2,700K

Special features
» Smart home-capable lighting solution
» Dynamic white lighting

Highlights_PROLAMP_groß_bibliothek

Pendant luminaire above workstations in
the library with indirect RGB+WW lighting

200112
LED pendant luminaire PROLAMP30FID
35W | white | 1180 mm |
lens 60° Sys-Pro radio dimmable | CCT | RGB+WW

Special features
» Dynamic white lighting
» Indirect RGB+WW lighting

Highlights_PROLAMP_groß_rezeption

Dynamic white pendant lamp
Up&Down at a hotel reception desk

200107
LED pendant light PROLAMP30HID
61W | black | 1500 mm |
U-Cover Push/DALI dimmable | CCT | CCT

Special features
» Dynamic white lighting
» U-Cover

Highlights_PROLAMP_groß_badezimmer

Mirror luminaire in the
bathroom of a hotel (<130lm/w)

200106
LED pendant light PROLAMP30H
10W | white | 600mm | U-Cover | 3,000K

Special features
» U-Cover

Highlights_PROLAMP_groß_seniorenheim

Ceiling mounted light in the
corridor of a retirement home (>150 lm/W)

200105
LED surface-mounted light PROLAMP30H
49W | white | 3000 mm | opal+ | 3,000K

Special features
» Wide-area illumination

Highlights_PROLAMP_groß_supermarkt

Asymmetric linear luminaire
in the supermarket (120 lm/W)

200108
LED pendant luminaire PROLAMP30F
34W | white | 2356 mm |
asymmetrical 25° | 4,000K

Special features
» Special lens cover
